Display / video : 2 x VGA - 15 pin HD D-Sub (HD-15) ¦ Microphone : 3 x input - mini-phone 3.5 mm ¦ Audio : 3 x line-out - mini-phone stereo 3.5 mm ¦ Display / video : 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ Microphone : 1 x input - mini-phone 3.5 mm ¦ Audio : 1 x line-out - mini-phone stereo 3.5 mm ¦ Keyboard : 1 x 4 pin USB Type A ¦ Mouse : 1 x 4 pin USB Type A ¦ Hi-Speed USB : 2 x 4 pin USB Type A
Power
Power Device
Power adapter - external
Miscellaneous
Width
5 in
Depth
2.9 in
Height
1.6 in
Weight
15.9 oz
Cables Included
2 x keyboard / mouse / video / USB cable - 6 ft ¦ 1 x keyboard / mouse adapter
Compliant Standards
DDC-2B
Software / System Requirements
OS Required
UNIX, Apple MacOS X 10.x or later, Microsoft Windows Vista / 2000 / XP
Manufacturer Warranty
Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years
Main Features

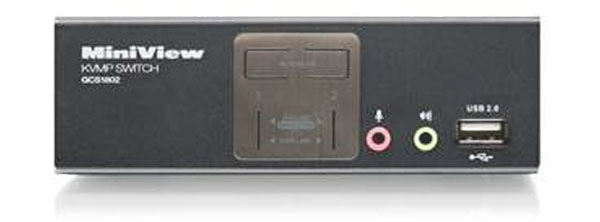

Iogear 2 Port KVMP Switch with USB 2.0 Hub and Audio
The GCS1802 is the latest addition to IOGEAR's market leading KVM product line. It is a 2-port KVMP switch with stereo audio ports and an integrated 2-port USB 2.0 hub. Now users can control two computers and share multiple USB peripherals from a single keyboard, monitor, and mouse console.
Setup is fast and easy; simply plug the cables into their appropriate ports. There is no software to configure or install. Also, the included USB to PS/2 converter permits flexible configurations for the keyboard and mouse.
It features the patented asynchronous switching, which allows the user to independently switch applications between the connected computers. You can run an application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected directly to the hub or via daisy chaining external powered USB 2.0 hubs. Access to such peripherals is performed on a one-at-a-time basis. Additionally, the display emulation technology makes the switch intelligent to read and remember the monitor's optimal display parameters and refresh rate. Finally, the audio ports allow for connecting powered PC speakers for stereo sound and a single microphone for audio input/output to each computer.
Features:
2-port KVMP switch w/ built-in 2-port High Speed USB 2.0 compliant hub
Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
Audio enabled - full bass response provides 2.1 stereo sound
Console audio ports on front panel for easy access
Independent switching of KVM, USB, and Audio
Maximum VGA video resolution 2048 x 1536 - supports widescreen monitors
Three convenient computer switching methods - front panel pushbutton, On Screen Display (OSD), or Hotkeys
Multiplatform support – Windows 2000/XP/Vista, Mac OS 10.x or higher, and Unix
Display emulation technology – reads and remembers the display's optimal parameters
Console mouse port emulation bypass feature supports programmable mice
Complete keyboard emulation for error free booting
Sun/Mac keyboard support and emulation
Auto Scan Mode for sequentially monitoring all computers
LED display for easy status monitoring
Complete solution – all cables included
Easy installation – no software require
