Startech SATA Hard Drive HDD Duplicator Dock - eSATA USB - hard drive duplicator
Serial ATA - integrated ( Hi-Speed USB / eSATA-300 )
Controller Interface Type
Serial ATA-300
Data Transfer Rate
300 MBps
Supported Devices
Hard drive
Max Storage Devices Qty
2
Hard Drive
Type
None.
Expansion / Connectivity
Expansion Bays
2 (total) / 2 (free) x front accessible - 2.5" / 3.5" shared
Interfaces
1 x Hi-Speed USB - 4 pin USB Type B ¦ 1 x eSATA-300 - 7 pin external Serial ATA ¦ 2 x Serial ATA-300 - 22 pin Serial ATA
System Requirements
OS Required
Linux, Apple MacOS X, Microsoft Windows XP 64-bit Edition, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Server 2008 R2, Microsoft Windows 7 64-bit Edition, Microsoft Windows Server 2003 x64 Edition, Microsoft Windows Vista (32/64 bits)
Miscellaneous
Features
Tested with up to 4TB 5400 RPM 3.5” hard drives, tested with up to 1TB 5400 RPM 2.5” hard drives
Compliant Standards
Plug and Play, FCC, RoHS
Power
Power Device
Power adapter - external
Voltage Required
AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty
Service & Support
2 years warranty
Service & Support Details
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
41 °F
Max Operating Temperature
176 °F
Humidity Range Operating
8 - 90%
Main Features

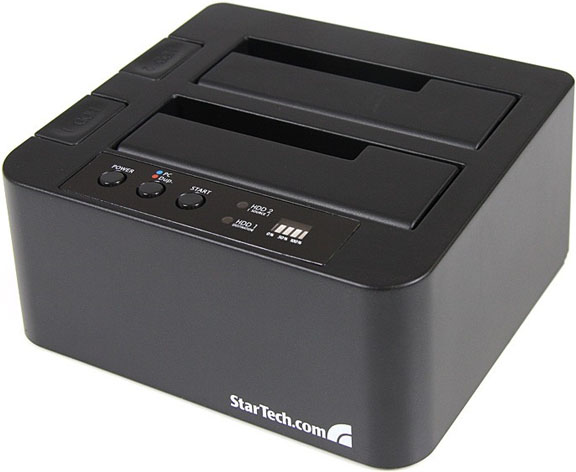

The SATDOCK22RE USB and eSATA Standalone Duplicator Dock lets you duplicate/clone an existing hard drive without the use of a host computer system, or can be connected to a computer system for use as an external hard drive dock.
As a hard drive duplicator, you can create an exact 1 to 1 sector clone from one hard drive to another, including partition and boot sector information and all data, at a rate of 72MB/second - ensuring data integrity and consistency for sensitive operations, such as data recovery.
As an external hard drive dock, the duplicator/dock supports plug-and-play installation and can be connected to your host computer through USB 2.0 or eSATA, providing data transfer speeds up to 480Mbps or 3Gbps respectively from the hard drives to your computer system.
Not having to install the hard drives into an enclosure or tray system allows for quick setups - a perfect solution for situations that require swapping through multiple drives, which combined with no driver or software installation requirements delivers a convenient and versatile storage solution.
Features:
Standalone Sector by Sector copying
LED progress bar for duplication status
Patented hard drive eject push-buttons for each drive
Push-button switching between Duplicator mode and Docking Station mode
A single high speed eSATA host interface, with transfer rates up to 3Gbps
Supports both 2.5in and 3.5in form factor hard drives
Supports SATA revision 1.0/2.0 (SATA 150/300) drives up to 2.0TB in capacity
High speed USB 2.0 host interface, with transfer rates up to 480Mbps
Compact, desktop-style form factor
Hot-Swap and Plug-and-Play compatible
Applications:
Disk sector imaging/cloning to create an exact replica of a source drive onto a different drive.
Create identical backups for when data integrity is crucial, such as data recovery and forensic applications.
Technicians who require access to bare hard drives for backup/recovery purposes or needs to swap between drives regularly.
Quickly access data from a drive, without having to install it internally or into an enclosure.
